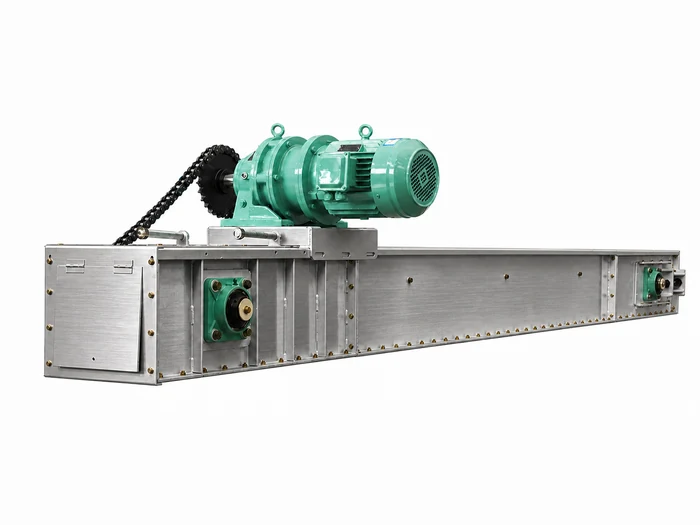

Stainless Steel Scraper Conveyor

The Voson Stainless Steel Scraper Conveyor provides enclosed, continuous horizontal transfer of flour, bran, starch, premixed powders and other suitable dry materials. A conveying chain fitted with scraper flights moves the product through a covered rectangular casing between bins, milling equipment, blending systems and packing sections.

Compared with an open conveying route, the enclosed casing helps contain dust, limit product loss and protect the material from the surrounding production environment. Conveyor length, casing section, chain, scraper arrangement, inlet and outlet positions, drive system and supporting structure are configured for the actual flour mill layout.

Product Overview

Item	Available Configuration
Typical materials	Flour, bran, starch, premixed powders and other suitable dry products
Conveying direction	Mainly horizontal; a slight incline can be evaluated for the project
Casing	Enclosed rectangular casing with customized inlet and outlet positions
Product-contact construction	Stainless steel; grade and construction scope confirmed for each project
Drive system	Motor and gearbox selected according to material load and conveying distance
Feeding arrangement	Single or multiple feeding points, subject to the process layout
Plant integration	Flour bins, milling equipment, mixers, weighing systems and packing machines

This conveyor is intended for an engineered flour-processing route rather than a universal fixed-capacity machine. Final selection depends on material bulk density, particle size, moisture, flowability, conveying distance, loading condition and required throughput.

How the Scraper Conveyor Works

The conveying chain circulates around the head and tail sprockets inside the casing. Scraper flights attached to the chain move the material along the bottom of the conveying chamber from each feeding point toward the selected discharge point.

The head section normally contains the drive assembly. The tail section provides chain take-up or tension adjustment, while guide components support the return chain. Inspection covers and access points can be arranged for checking chain tension, cleaning the conveying chamber and carrying out routine maintenance.

Several bins or processing machines can feed one conveying line when the loading arrangement is properly engineered. The inlet design and upstream feed rate must keep the conveyor within its designed load to avoid product buildup, excessive chain tension or unstable discharge.

Key Features for Flour Mill Plants

• Enclosed material transfer: The covered casing helps control flour dust and reduce product loss during horizontal conveying.
• Stainless steel contact surfaces: The casing, scraper flights and other product-contact components can be manufactured in stainless steel according to the required scope.
• Multiple inlet options: Several collection points can be connected along one conveyor for a coordinated production flow.
• Customized discharge positions: Outlet quantity, dimensions and locations can match bins, mixers, weighing equipment or packing systems.
• Inspection and cleanout access: Covers, openings and cleanout sections can be arranged around the plant's hygiene and maintenance procedure.
• Production-line controls: Variable-frequency drives, level sensors, blockage monitoring and electrical interlocks can coordinate the conveyor with connected equipment.
• Project-specific layout: Conveyor length, support positions and connection dimensions are designed around the available factory space.

The required stainless steel grade, surface finish and scope of stainless steel construction must be confirmed before manufacture. Product-contact parts, supporting frames and drive components do not automatically use the same material unless complete stainless steel construction is specified.

Applications in Flour Processing

A stainless steel scraper conveyor is commonly considered where several machines or bins must discharge into one enclosed horizontal conveying route. Typical installation positions include:

1. Beneath flour or bran collection hoppers.
2. Between finished-flour storage and a blending section.
3. Below several bins that discharge into one downstream process.
4. Between a mixer and a finished-product buffer bin.
5. Before weighing or automatic flour packing equipment.
6. In a bran, by-product or suitable dry-ingredient handling section.

For a complete wheat flour milling plant, the conveyor inlet elevations, flange dimensions, outlet positions and electrical control sequence should be coordinated with all connected machines before manufacturing.

Very sticky, highly abrasive, fragile or poorly flowing products require a separate engineering assessment. These characteristics can affect residue, wear, chain load, discharge behavior and cleaning frequency.

Scraper Conveyor or Screw Conveyor?

Both machines can provide enclosed material transfer, but they use different conveying elements and suit different routes.

Selection Point	Stainless Steel Scraper Conveyor	Stainless Steel Screw Conveyor
Conveying element	Chain with scraper flights	Rotating helical screw
Preferred route	Mainly horizontal transfer	Horizontal or inclined transfer
Typical role	Collecting material from one or more points along a production line	Compact feeding, short-distance transfer or inclined lifting
Casing structure	Covered rectangular casing	Tubular or covered U-trough casing
Main selection factors	Chain load, casing section, route and discharge arrangement	Screw diameter, pitch, speed and installation angle

A scraper conveyor is often selected for enclosed horizontal collection beneath multiple bins or processing machines. A stainless steel screw conveyor is often simpler for a short straight connection, controlled feeding or inclined transfer. The correct choice depends on the material, route, capacity, cleaning procedure and available space.

Reference Selection Parameters

Confirmed universal model, capacity and motor-power data are not available for this product. The following information is therefore a reference selection guide, not a fixed specification sheet.

Parameter	Reference Selection Basis
Model	Customized for the project; final model stated in the quotation
Capacity	Calculated from required throughput, bulk density and loading condition
Motor power	Selected from conveying distance, material load, chain resistance and route
Conveying length	Manufactured according to equipment layout and support conditions
Installation	Horizontal as standard; slight incline subject to engineering confirmation
Inlet and outlet	Quantity, position and dimensions customized to connected equipment
Stainless steel scope	Product-contact parts or complete structure, as specified by the customer
Control options	Fixed-speed drive, variable-frequency control, sensors and interlocks

Any preliminary value remains a reference until the material information and layout drawing have been reviewed. Voson confirms the final casing, chain, scraper, sprocket, gearbox and motor configuration for the actual operating conditions.

Selection and Customization

To configure a suitable stainless steel scraper conveyor, provide:

1. Material name and whether it is flour, bran, starch, powder or a mixed product.
2. Bulk density, particle size, moisture and flowability, if available.
3. Required conveying capacity and daily operating time.
4. Horizontal conveying distance and any change in elevation.
5. Number, position and dimensions of feeding and discharge points.
6. Upstream feeding method and downstream equipment capacity.
7. Available installation space and supporting conditions.
8. Cleaning frequency and product-change requirements.
9. Required stainless steel grade, construction scope and local power supply.

Voson uses this information to prepare the layout and select the casing section, conveying chain, scraper arrangement, drive power, inlet and outlet structure and supporting frame. The conveyor can be integrated into a new flour mill plant or used to upgrade an existing material-handling section.

Frequently Asked Questions

What materials can a stainless steel scraper conveyor handle?

It can be configured for flour, bran, starch, premixed powders and other suitable dry materials. Bulk density, moisture, abrasiveness and flowability must be evaluated before selection.

Is this the same as a buried scraper conveyor?

It uses the enclosed chain-and-scraper conveying principle commonly associated with buried or enclosed scraper conveyors. The final casing, chain route and scraper structure are confirmed from the project requirements.

Can the conveyor operate on an incline?

The equipment is primarily intended for horizontal conveying. A slight incline may be possible after engineering review, but the angle, capacity and drive selection must be confirmed for the actual material and route.

Is the complete machine made from stainless steel?

The construction scope is project-specific. Product-contact parts can be stainless steel, while the frame, drive and other non-contact components can be specified separately. Confirm the grade and scope in the quotation.

How are capacity and motor power selected?

They are selected from required throughput, material bulk density, conveying distance, loading condition, casing section, chain resistance and operating time. Fixed figures should not be used without this information.

What information is required for a quotation?

Provide the material, capacity, conveying distance, inlet and outlet positions, plant layout, stainless steel requirements and local power supply. A layout drawing or site dimensions will help Voson confirm the configuration.

Contact Voson with your material information and flour mill layout to receive a suitable stainless steel scraper conveyor configuration and quotation.
