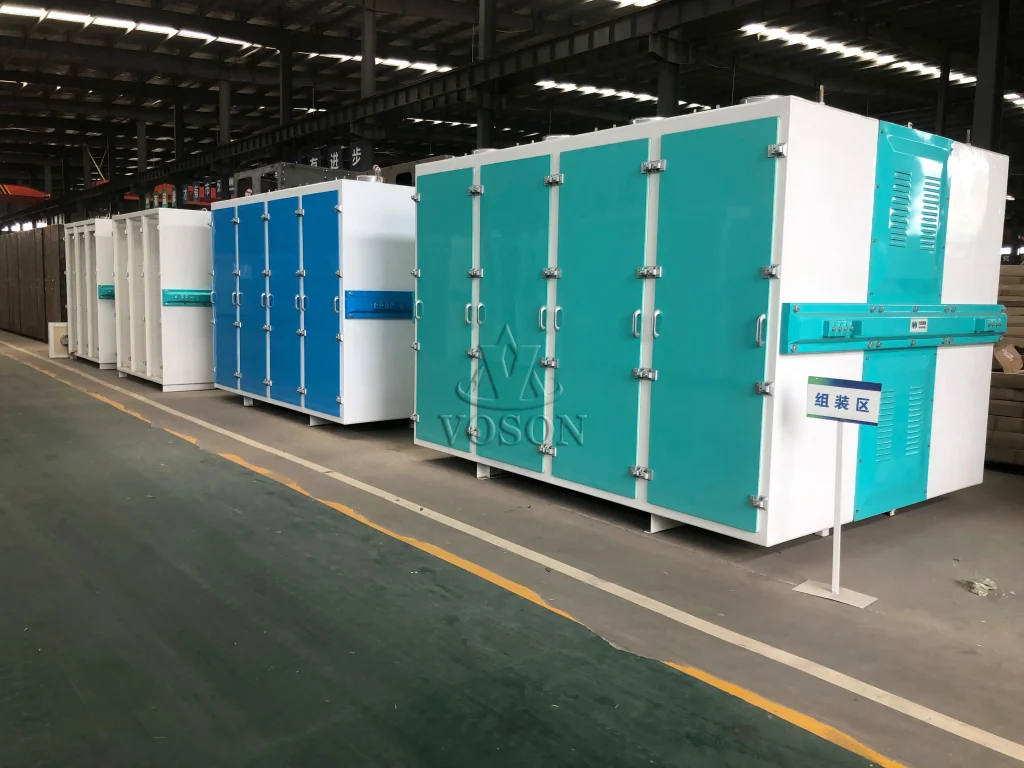

FSFG Series Plansifter
Capacity: 200 T/D
The FSFG Series High Capacity Plansifter is specially designed for flour milling applications, ensuring efficient grading and separation of fine flour and bran. Its multi-compartment, multi-sieve structure provides a large effective sifting area, delivering high productivity and precise flour classification. Ideal for wheat flour milling plants, this plansifter guarantees consistent flour quality and reduces material […]
The FSFG Series High Capacity Plansifter is specially designed for flour milling applications, ensuring efficient grading and separation of fine flour and bran. Its multi-compartment, multi-sieve structure provides a large effective sifting area, delivering high productivity and precise flour classification. Ideal for wheat flour milling plants, this plansifter guarantees consistent flour quality and reduces material losses during the milling process.
Technical Parameters
| Model | Comp. | Sieves per Comp. | Max Sieve Area (㎡) | Main Shaft Speed (r/min) | Radius of Gyration (mm) | Effective Sieve Height (mm) | Top Sieve Height (mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| FSFG740×4×27 | 4 | 23–27 | 41.3 | 245 | ≤65 | 1900–1940 | 125 | 5.5 | 3850 |
| FSFG740×6×27 | 6 | 23–27 | 62.1 | 245 | ≤65 | 1900–1940 | 125 | 7.5 | 4800 |
| FSFG740×8×27 | 8 | 23–27 | 82.7 | 245 | ≤65 | 1900–1940 | 125 | 11 | 6000 |
Key Features of FSFG Plansifter
1、Labyrinth sealing at motor shaft ends – prevents flour ingress and prolongs motor life.
2、Elastic support with balance iron under main shaft – ensures smooth, stable operation.
3、Precision transmission – imported self-aligning roller bearings maintain concentric rotation.
4、Adjustable top sieve pressure structure – easy operation and convenient maintenance.
5、Innovative sieve and sieve box design – increases effective sifting area and throughput.
6、Strict sealing on sieve doors and channels – prevents flour leakage.
7、Heavy-duty frame – automotive-grade steel, welded and folded for high rigidity and fatigue resistance.
8、Fully enclosed structure – built-in drive motor, elegant design, safe and hygienic.
9、Sieve options – either wooden or aluminum alloy sieves are available for different processing needs.

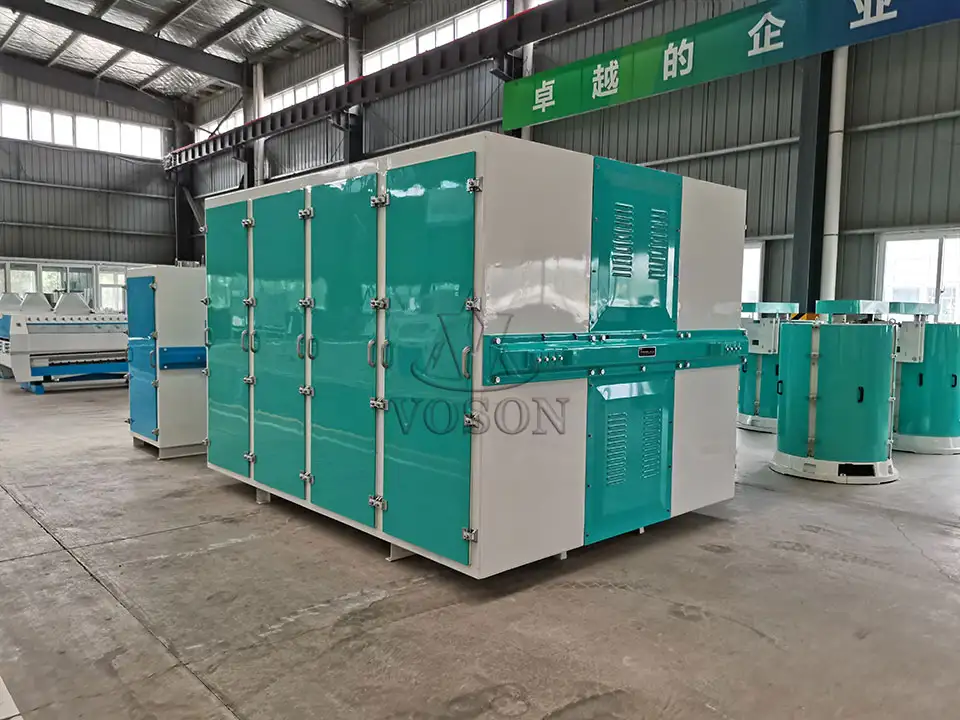

Applications in Wheat Flour Mill Plant
FSFG plansifters are exclusively used in wheat flour milling lines for separating fine flour from bran and other coarse particles. They can be seamlessly integrated with single-machine cleaning and sifting equipment such as the FSFJ Mono Section Plansifter, FFPD Bran Finisher, and FDMWA Wheat Scourer, forming a complete, high-efficiency milling line.
