Laboratory Mill
Capacity: 10kg/h

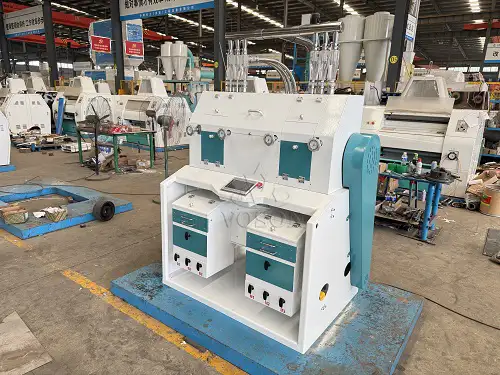

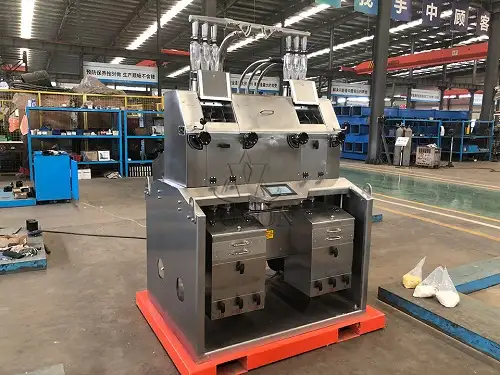

The Voson Laboratory Mill is a domestically and internationally advanced automatic experimental flour milling machine. It is specially designed for grain processing laboratories and research institutions to simulate the complete flour milling process on a small scale. This equipment adopts a highly efficient and precise milling system, integrating feeding, grinding, lifting, and sifting into one […]
The Voson Laboratory Mill is a domestically and internationally advanced automatic experimental flour milling machine. It is specially designed for grain processing laboratories and research institutions to simulate the complete flour milling process on a small scale. This equipment adopts a highly efficient and precise milling system, integrating feeding, grinding, lifting, and sifting into one compact structure. With stable operation, clean performance, and accurate test results, it provides reliable data support for flour milling experiments and quality analysis.
Get a Free Quote and Details !
Technical Parameters of Laboratory Mill
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Max Capacity | 10 kg/h | Sieve Rotation Speed | 298 r/min |
| Roller Model | φ155×200 mm | Sieve Rotation Diameter | φ23 mm |
| Fast Roller Speed | 500 r/min | Air Volume | 669 m³/h |
| Fluted Roller Speed Ratio | 2.5:1 | Air Pressure | 2710 Pa |
| Smooth Roller Speed Ratio | 1.5:1 | Dimension | 1330×1100×1870 mm |
| Motor Power | 1.5 + 1.5 + 0.55 kW | Weight | 650 kg |
Laboratory Flour Mill Features
Advanced “three bran-three core” milling process, effectively simulating industrial flour milling flow.
Quantitative feeding system with a non-blocking and anti-arching design ensures stable and continuous material feeding.
Efficient pneumatic lifting system guarantees smooth material conveying and reduces material loss.
Rotary sifting system with high efficiency and minimal material accumulation.
Integrated structure of collection hopper and sifting chamber, maintaining cleanliness, hygiene, and dust-free operation.
Flexible power transmission for the bran and core milling system, ensuring smooth operation and low noise.
Automatic sieve and shelling cone cleaning system, ensuring stable and efficient performance.
Equipped with an intelligent electrical control system for convenient and reliable operation.
High-quality imported bearings ensure durability and long service life.
Laser-cut steel plates guarantee machining precision and easy assembly.
Electrostatic powder coating surface treatment provides strong corrosion resistance and a smooth finish.
Get a Free Quote and Details !
Application in Flour Milling Research
The Voson Laboratory Mill is mainly used for:
- Testing the milling performance of wheat and other grains before large-scale processing.
- Conducting flour yield analysis and quality assessment in laboratories.
- Training and teaching purposes in technical institutes and food engineering universities.
It accurately reproduces the industrial milling process on a small scale, providing dependable data for process design and quality control in flour milling plants.
