Air recycling Aspirator
Capacity: 10-120t/h

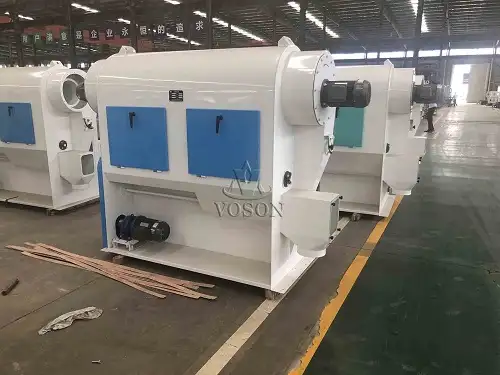

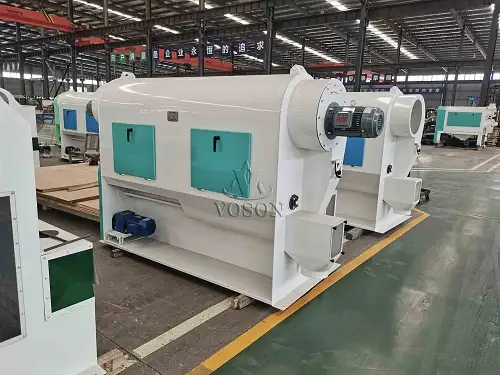

The Air-recycling Aspirator, developed by Henan Voson Grain Engineering Machinery Co., Ltd., is a high-efficiency auxiliary cleaning machine used for removing light impurities from grains and seeds. It can operate independently or work in combination with other cleaning equipment, ensuring uniform cleaning and minimizing dust emission. The machine uses self-circulating air to lift and separate […]
The Air-recycling Aspirator, developed by Henan Voson Grain Engineering Machinery Co., Ltd., is a high-efficiency auxiliary cleaning machine used for removing light impurities from grains and seeds. It can operate independently or work in combination with other cleaning equipment, ensuring uniform cleaning and minimizing dust emission.
The machine uses self-circulating air to lift and separate light impurities such as husks, dust, broken kernels, and fine debris from the main grain stream. The patented air-tight and impurity discharge system ensures consistent separation performance, while the adjustable air ducts allow operators to fine-tune airflow based on grain type and processing capacity.
Get a Free Quote and Details !
Technical Parameters
| Model | Capacity (t/h) Pre-cleaning / Cleaning | Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| TFXH60 | 40 / 9 | 2.2+0.75 | 489 | 1240×1005×1745 |
| TFXH80 | 50 / 12 | 2.2+0.75 | 538 | 1440×1005×1745 |
| TFXH100 | 65 / 16 | 3+0.75 | 538 | 1640×1005×1745 |
| TFXH125 | 83 / 20 | 3+0.75 | 630 | 2300×1005×1745 |
| TFXH150 | 100 / 24 | 2.2×2+1.1 | 680 | 2550×1005×1745 |
| TFXH180 | 105 / 28 | 3×2+1.1 | 759 | 2850×1005×1745 |
| TFXH200 | 120 / 32 | 3×2+1.1 | 806 | 2870×1005×1745 |
Key Features of TFXH Air-recycling Aspirator
Independent or Combined Operation: Can be used alone or integrated into multi-stage cleaning lines for wheat, corn, rice, and other grains.
Self-circulating Air System: Equipped with its own fan system, the aspirator reuses air to separate light impurities efficiently while reducing energy consumption.
Advanced Impurity Discharge and Air-tight Mechanism: ensures excellent sealing and effective separation of light impurities.
Pressure-sealed Material Outlet: Guarantees air recirculation and prevents dust from escaping.
Adjustable Air Ducts: Adaptable to different materials and operational requirements for optimal cleaning results.
High-quality Materials and Surface Treatment: Precision manufacturing, premium materials, and electrostatic powder coating provide durability and long service life.
Get a Free Quote and Details !
Applications and Suitable Materials
This aspirator is ideal for wheat, corn, rice, soybean, and other seeds, particularly for feed mills, seed processing plants, and grain storage facilities. It removes light impurities that affect product quality and downstream processing efficiency, making it an essential part of modern grain cleaning lines.
